A-Star 32U4 Micro 5V/16MHz, Pololu 3101

The module is equipped with an ATmega32u4 microcontroller with an installed bootloader compatible with the environment of Arduino. It is equipped with 18 digital inputs/outputs, as well as popular communication interfaces. It works with voltages of 5 V. The advantage of the A-Star module is its small size - compatible with the housing of DIP20.

Specification:

• Supply voltage:
• From 5 V USB socket
• Outer VIN: 5 V to 15 V
• Microcontroller: ATmega32u4 16 MHz
• I/O pins: 15
• PWM channels: 7
• Built-in USB full-speed controller
• Number of analog inputs: 8
• Serial interfaces: UART, SPI, I2C
• External interrupts
• Two LEDs at the user's disposal
• Led out ICSP connector to connect an external AVR programmer
• MicroUSB connector for programming (microUSB cable not included)
• The module is compatible with Arduino IDE

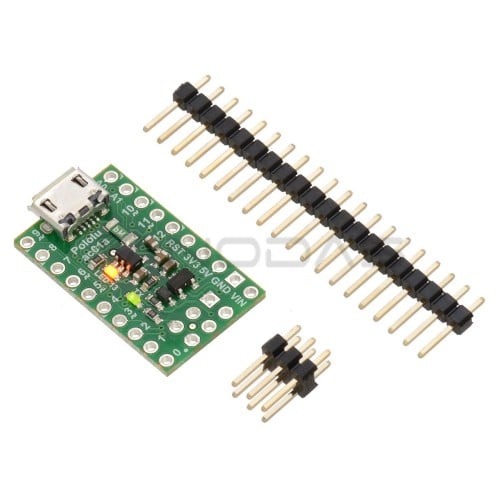

• Set has goldpin connectors for self-soldering

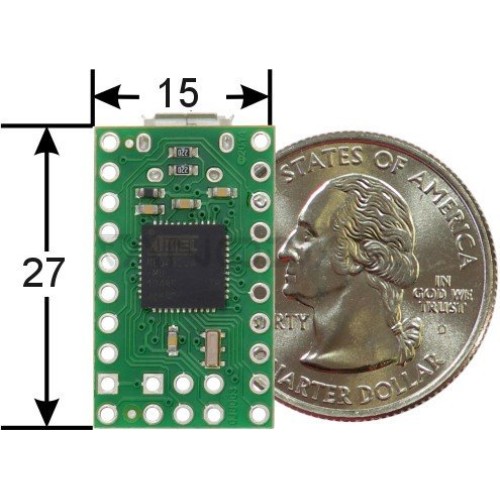

• Dimensions: 27 x 15 x 4.7 mm - case of DIP20
• Weight: 1.5 g (without connectors)
