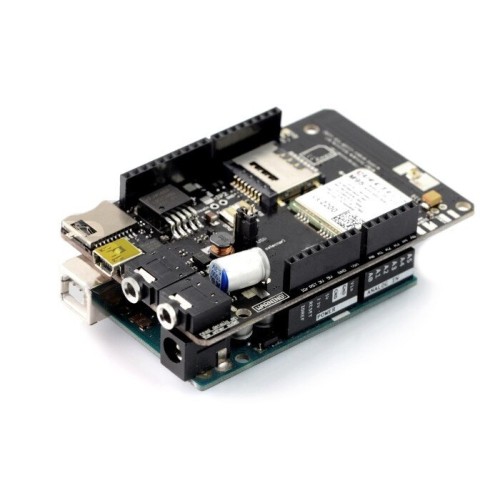

A-II GSM Shield, GSM/GPRS/SMS/DTMF v.2.105, for Arduino and Raspberry Pi, assembled

• Driver: Quectel M85
• Supported standards: GSM / GPRS
• Frequencies: 850 / 950 / 1800 / 1900 MHz
• Support of the DTMF standard
• Dual SIM option
• Support for AT commands via encrypted SSL communication
• Built-in PCB antenna with the possibility of connecting external version via u.Fl connector
• The possibility of choosing the power source via jumper:
• USB
• built-in 5 V controller
• the input voltage VIN
• Built-in connectors:
• for SIM card (x2 of dual SIM)
• for the microSD memory card up to 32 GB
• microUSB - built-in UART - USB converter (cable sold separately)
• outputs of audio Jack for connecting the headphones/speakers
• audio Jack inputs for connecting a microphone
• connector u.FL for external antenna (antennas and adapters u.FL - SMA sold separately)
• Included are extended soldered connectors for Arduino
• The connector's system is suitable for Arduino: Uno, Leonardo, Mega 2560, Mega ADK
• Output reset button of the Arduino
• Works with Raspberry Pi: 3, 2, B+, A+
• Three mounting holes with a diameter: 3 mm
• Board sizes: 83 x 54 mm
