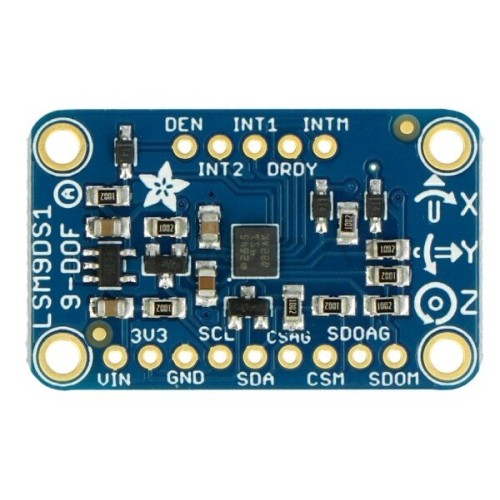

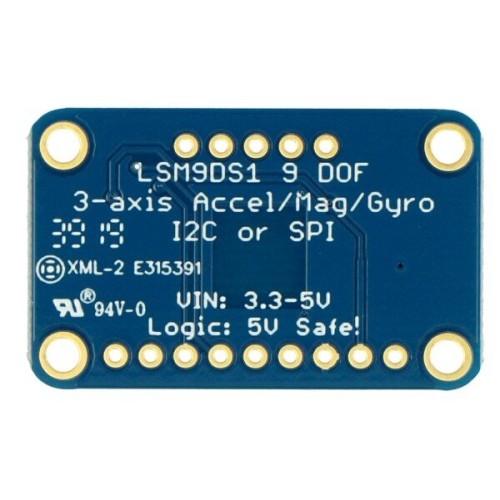

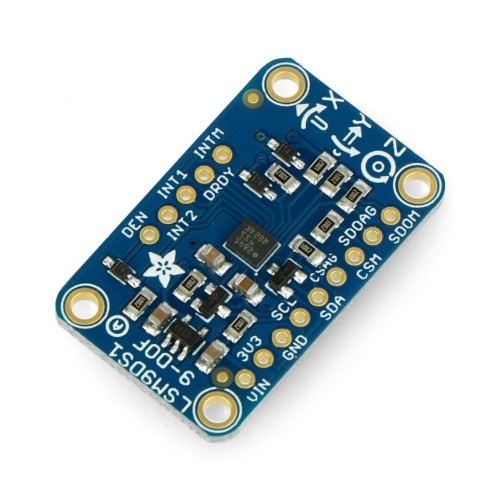

9-DOF 3-axis digital accelerometer, gyroscope, and magnetometer + temperature breakout board, LSM9DS1, Adafruit 3387

Brand: Adafruit
Product Code: AN-08441
Availability: 4-6 business days
Planned delivery date after ordering: 2025-03-25
40.00€
Ex Tax: 33.06€

Qty

The sensor is a combination of a 3-axis digital gyroscope, accelerometer, and compass. It allows you to measure acceleration, magnetic field, and angular velocity in the configurable ranges. It communicates via the I2C or SPI bus, it works with voltages of 3.3 V and 5 V, it has a built-in thermometer.

Specification:

  • Supply voltage: 3 V to 5 V
  • Built-in voltage converter - it works with 3.3 V and 5 V
  • Communication interface: I2C or SPI
  • Built-in temperature sensor
  • Gyroscope:
    • 3 axes: X, Y, Z
    • Adjustable range: ± 245, ± 500, and ± 2000 °/sec
    • Resolution: 16 bits
  • Accelerometer:
    • 3 axes: X, Y, Z
    • Adjustable range: ± 2 g, ± 4 g, ± 8 g, ± 16 g
    • Resolution: 16 bits
  • Magnetometer (compass)
    • 3 axes: X, Y, Z
    • Range: ± 4, ± 8, ± 12, ± 16 gauss
    • Resolution: 13 bits
  • Pins: holes for goldpin connectors - 2.54 mm pitch
  • Goldpin connectors are in the kit for self-soldering
  • Four mounting holes
  • Board sizes: 33 x 20 mm

Set includes:

  • Board with sensor LSM9DS1
  • Goldpin strap, 2.54 mm pitch for self-soldering
