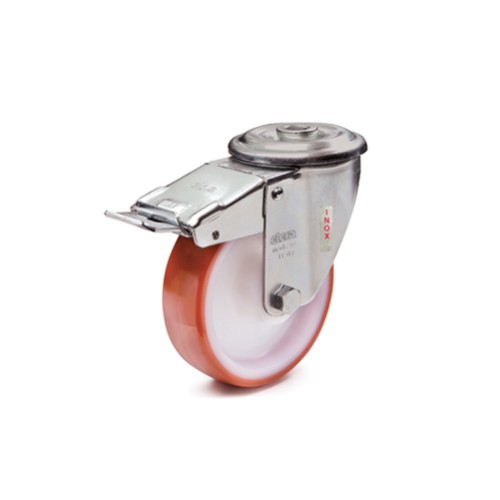

80mm polyurethane swivel wheel with brake, load capacity 120 kg RE.FF-80-FBF-SST-N

Brand: ELESA+GANTER
Product Code: MX-RE-FF-80-FBF-SST-N
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-20
55.40€
Ex Tax: 45.79€

Qty

The RE.FF-80-FBF-SST-N wheel set is a high-quality, durable polyurethane wheel with a diameter of 80 mm , equipped with a brake. Its swivel housing has a through-hole mounting hole. The load capacity of this wheelset is up to 120 kg. The hub is made of polyamide-based (PA) technopolymer, and the wheel tread is made of hard polyurethane with a hardness of 55 Shore D. The wheel bearings are located directly in the wheel disc via a through hole. The RE.FF-80-FBF-SST-N wheel set is the ideal solution for transport trolleys, pallets, racks and other industrial applications. Its rugged construction and durability make it an ideal product for everyday use.
D [mm]: 80
Length L [mm]: -
H [mm]: 107
d1 [mm]: 73
d2 [mm]: 12
R [mm]: 120
l%1% [mm]: -
s [mm]: -
B [mm]: -
l3 [mm]: 30
l%2%: -
b1 [mm]: -
b2 [mm]: -
b3 [mm]: 39
Dynamic load [N]: 1200
Rolling load capacity * [N]: 1200
Housing material: stainless steel
Housing: swivel with through-hole mounting
Hub: polyamide based technopolymer (PA)
Tread: polyurethane
Tread hardness: 55 Shore D
Load capacity [kg]: 120
Brake: yes
Wheel bearing: through hole directly in the wheel disc
