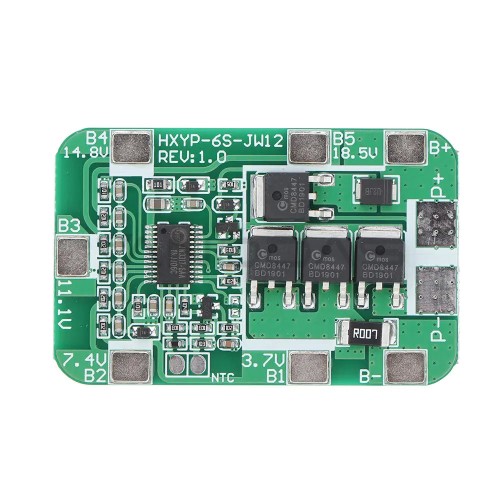

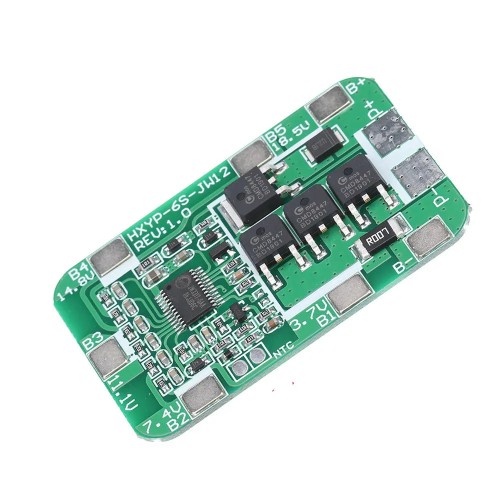

Li-ion Lithium Battery 18650 Charging and protection Board 6S 8A

Brand: OEM
Product Code: EL-1236
Availability: Temporarily Out Of Stock
7.50€
Ex Tax: 6.20€

BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery.

Technical Parameters:

  • Input voltage: 25.2 V
  • Over Charge Voltage Range: 4,25–4,35v ± 0,05v
  • Over Voltage Range: 2,3-3,0v ± 0,05v
  • Max charging Current: 8A
  • Max discharging Current: 8A
  • Working temperature: -40 --- + 50
  • Dimensions: 60x40 mm
