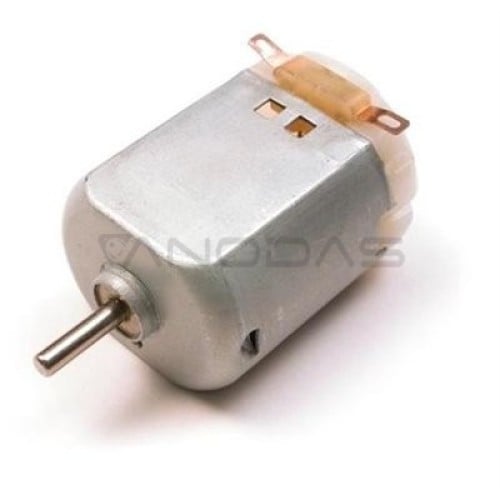

3V Mini DC motor 130

Product Code: AN0244
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse In Stock
1.60€
Ex Tax: 1.32€

Qty

 This is a standard '130 size' DC motor. It comes with a wider operating range than most toy motors: from 3 to 6VDC, This range makes them perfect for controlling with most of the Arduino Motor Shield, or with an Arduino where you are more likely to have 5V available than a high current 3V setting.

   Specification

  • Operating Temperature: -10°C ~ +60°C
  • Rated Voltage: 6.0VDC
  • Rated Load: 10 g*cm
  • No-load Current: 70 mA max
  • No-load Speed: 9100 ±1800 rpm
  • Loaded Current: 250 mA max
  • Loaded Speed: 4500 ±1500 rpm
  • Starting Torque: 20 g*cm
  • Body Size: 25mm x 20mm x 15mm
  • Shaft Size: 8mm x 2mm diameter
  • Weight: 17.5 grams
