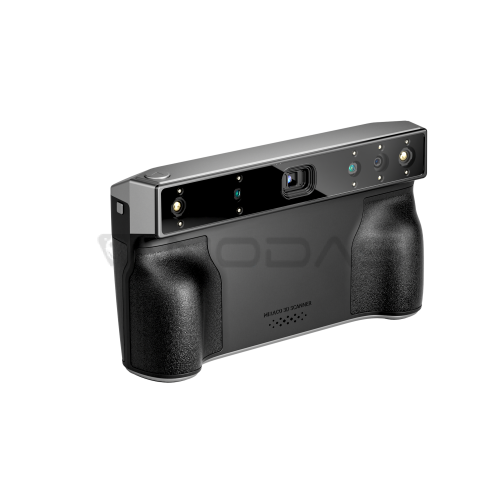

3D scanner - Revopoint Miraco Pro

The Revopoint Miraco Pro is a state-of-the-art 3D scanner that combines advanced technology with ease of use, giving users unparalleled versatility. Equipped with a modern optical system, it will accurately capture both large objects and small details. It is a separate device that does not require connection to a computer, with the ability to edit scanned records directly on the built-in screen. Thanks to the 48 Mpx RGB camera, the scanner accurately reproduces the colors and textures of scanned objects, which allows you to create even more realistic 3D models. The device allows you to adjust the operating mode according to the scanned object. Single-frame mode is designed for incremental scanning of complex areas, while continuous mode allows you to quickly create 3D models at up to 15 frames per second. Compared to the standard Miraco scanner, the Miraco Pro model offers an increased RAM memory of up to 32GB, which allows you to take up to 10,000 frames per scan.

One device, many possibilities

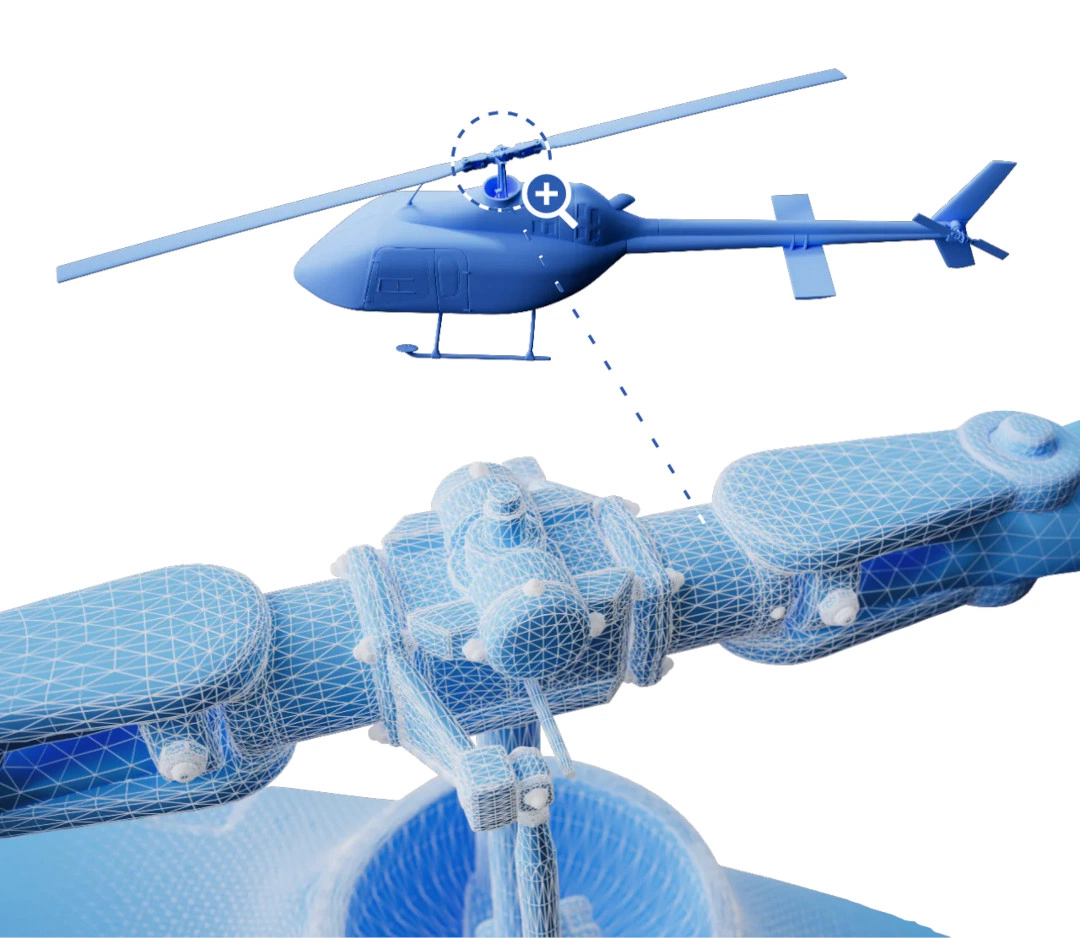

Miraco Pro stands out for its exceptional versatility and wide range of options. The scanner can accurately scan both small and large objects. The modern optical system allows you to capture small details with exceptional accuracy, as well as to scan larger objects without losing quality. These features make the Miraco Pro an ideal tool for a wide range of applications, from engineering and design to art and education.

Various scanning modes

The device allows you to adjust the operating mode according to the needs of the scanned object. Miraco Pro supports two modes: single shot mode and continuous mode. Single shot mode allows for precise, incremental scanning of an area in single shots, making it ideal for capturing the finest details. When scanning larger objects, Continuous Mode will be more efficient, as it allows you to quickly create 3D models at up to 15 frames per second.

Convenient operation

Miraco Pro is a convenient, self-contained device that does not need to be connected to a computer during operation. Users can view and edit scanned images directly on the built-in display, eliminating the need for additional hardware. However, if the scanned information needs to be sent to a computer, the Miraco Pro offers both WiFi and USB C connectivity. In addition, thanks to the Screen Mirroring function, the scanner can be connected to any TV or monitor.

Performance at the highest level

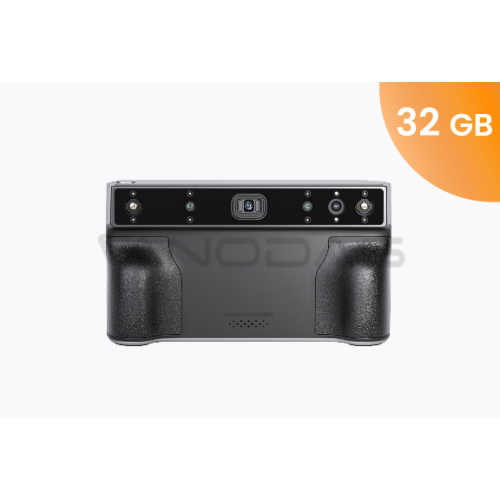

Miraco Pro is equipped with an 8-core processor with a clock frequency of 2.4 GHz, which ensures exceptional performance and fast data processing. With an impressive 32GB of RAM, users can enjoy smooth processing of large amounts of data. This makes Miraco Pro the ideal solution for scanning complex and large objects. In addition, the device has a built-in memory of 256 GB, which allows you to save many scans without having to immediately transfer them to other devices.

Integrated screen

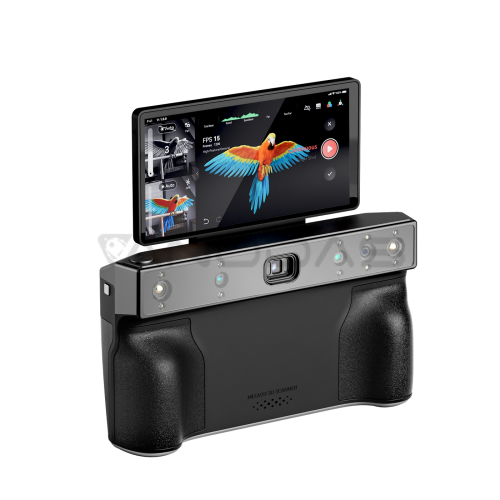

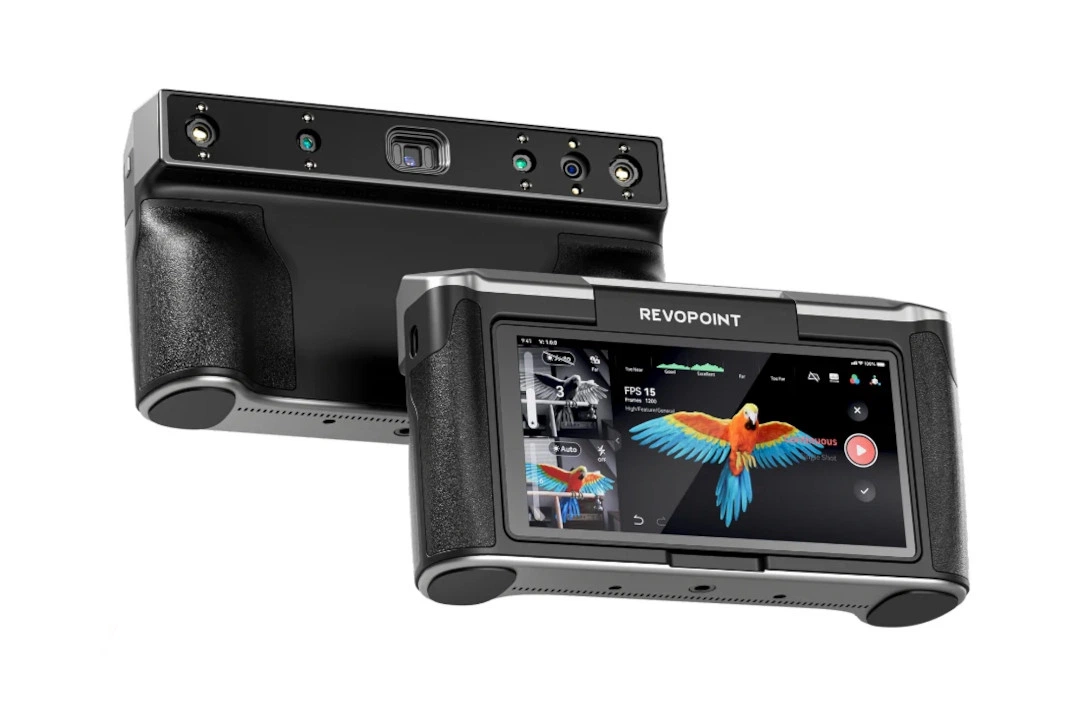

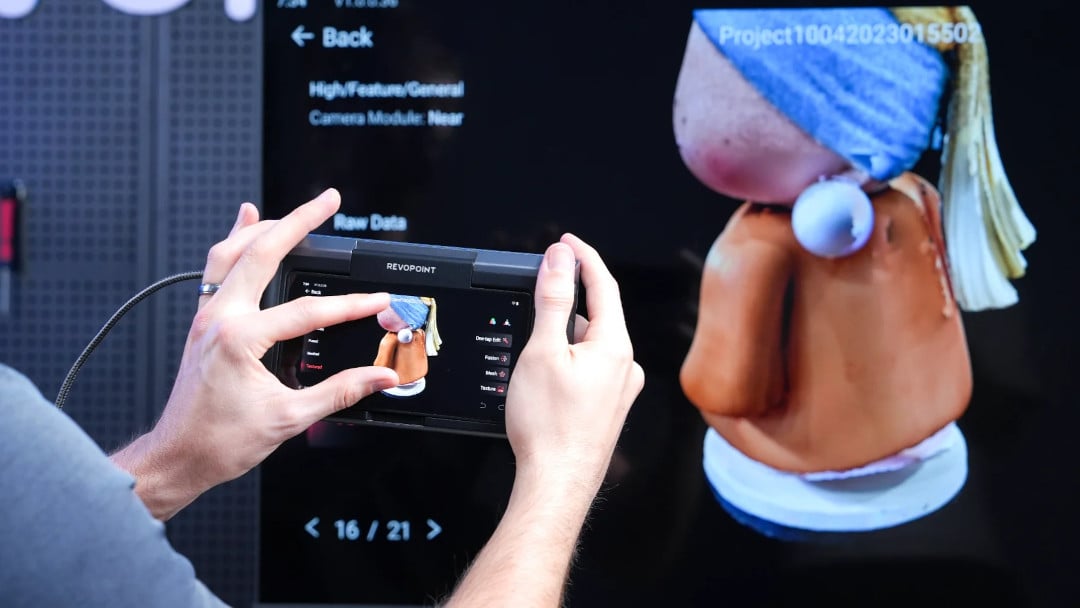

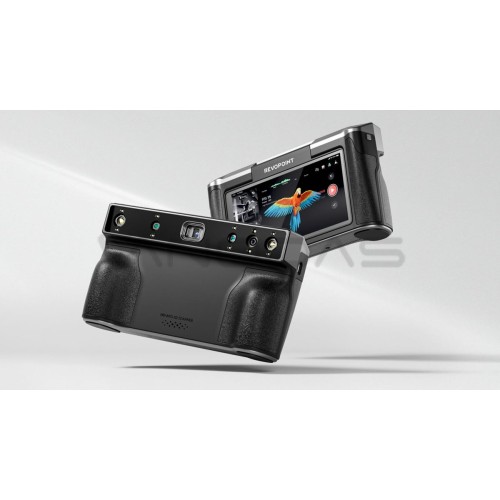

The built-in 6-inch AMOLED touch screen with high 2K resolution provides a bright and clear image and intuitive scanner control. The screen allows direct viewing and editing of scanned images, so no additional equipment is required. Thanks to the adjustable viewing angle of up to 180°, it can be adapted to various working conditions, for example, by scanning your face, you can monitor the whole process in real time.

Other features of the Revopoint Miraco Pro scanner

• Accurate reading within 0.02mm
• RGB camera with a 48 MPx matrix, which allows you to accurately reproduce the colors of objects
• Built-in 9-axis IMU sensor for smooth capture
• An intuitive interface makes it easy to control the scanner and process models
• Built-in 5000 mAh battery that guarantees 2 hours of continuous reading and supports fast charging
• Lightweight design that does not tire your hands even after long use

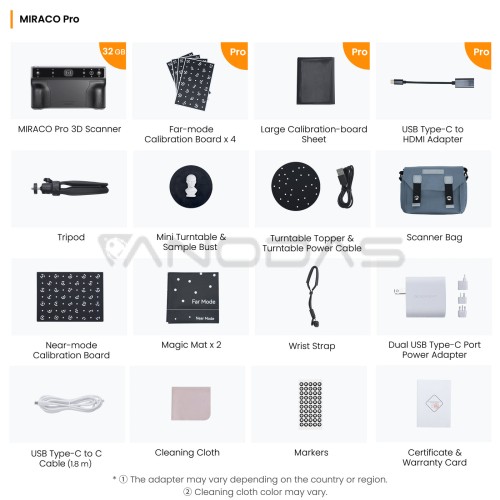

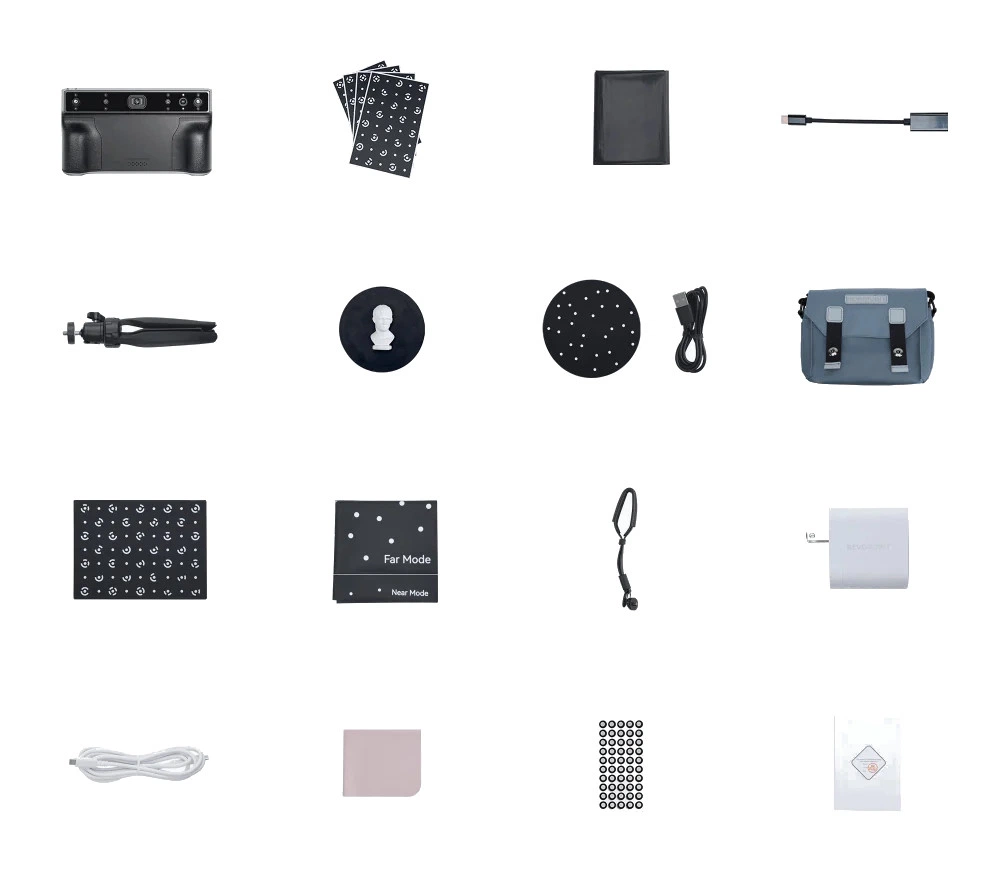

In the set:

• Revopoint Miraco Pro
• Tripod
• A small turntable
• The bust sample must be scanned
• Platform with markers for turntable
• Turntable power cord
• Almost mode calibration mat
• 4x Far-mode calibration mat
• Large calibration mat
• 2x mat with markers
• Wrist strap
• USB C - HDMI adapter
• Adapter with two USB C ports
• USB C to USB C cable
• Cleaning cloth
• Markers

Specifications:

• Accuracy of one scan: 0.02mm
• Resolution: 0.05mm
• Working distance: from 100 mm to 1000 mm
• Single scan range: 975x775mm at 1000mm, 28x53mm at 100mm
• Minimum scan dimensions: 10x10x10mm
• Scan speed: up to 15 frames per second
• Technology: Structured infrared light system with four cameras
• Light source: Class 1 infrared light
• Calibration: Function / Cursor
• Scan modes: single shot mode, continuous mode
• Color scanning: Yes
• Field Scan: Yes
• RAM: 32 GB
• Built-in memory: 256 GB eMMC
• Processor: 8 cores, 2.4 GHz
• Screen: touchscreen, 2k AMOLED, 6 inches
• RGB camera resolution: 48 Mpx
• Communication interface: WiFi, USB C
• Compatible operating system: Windows 10/11 (64-bit), macOS
• Dimensions: 200x50x110mm
• Weight: 750g
