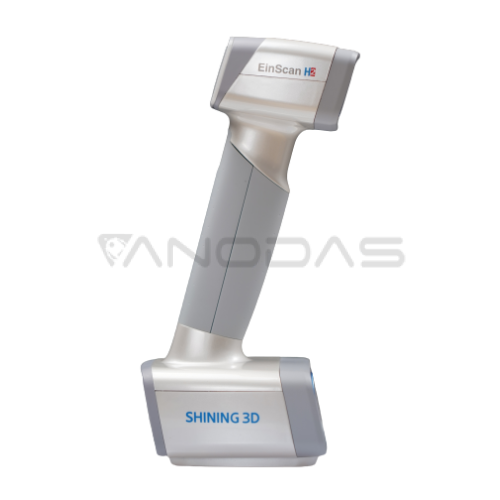

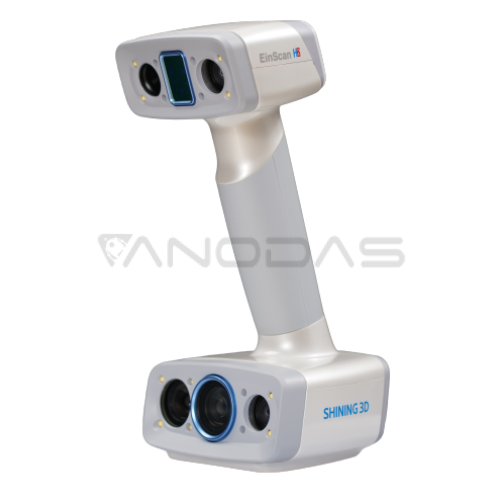

3D scanner EinScan H2

Brand: SHINING 3D
Product Code: PRM-11731
Availability: Temporarily Out Of Stock
6,873.90€
Ex Tax: 5,680.91€

The EinScan H2 is improved over its predecessor with a 5MP texture camera, increased precision and 3 infrared VCSEL projectors for more photorealistic textures and better quality data. Thanks to its wide scanning area and adjustable working distance, it is suitable for various scenes and objects, both small and large, in narrow or wide spaces. EinScan H2 is an efficient 3D scanning tool that can transform your workflow.

Features:

  • 3 infrared VCSEL projectors
  • 5 MP texture camera
  • Data acquisition camera
  • White light projectors

Photorealistic texture

Captures rich, vivid colors and clean textures for photorealistic 3D models.


Excellent adaptation to the environment

Ensure excellent material and lighting adaptability by easily managing a variety of surface types and scanning environments.


Hybrid light source

Dual light source improves scanning efficiency. The LED light offers fast 3D scanning with accurate, high-quality data. Infrared VCSELs are perfect for capturing dark surfaces, scanning the human body, and brightly lit environments.

Ultra wide FOV and adjustable working distance

  • Adjustable Working Distance: Allows you to adjust the working distance from 200mm to 1500mm to accommodate narrow or wide scenes and various sized objects.
  • FOV (Field of View) up to 780mm x 900mm: Provides flexibility in scanning scope to capture large objects quickly.
  • Markerless scanning: Scans rich geometric features without the hassle of markers.


Optimized for face and body 3D scanning

  • Flash-free infrared technology: ensures optimal comfort during face and body 3D scanning.
  • Advanced Hair Enhancement Algorithm: Designed to successfully capture light and dark hair.
  • Custom algorithm in IR mode: captures 3D body data quickly and smoothly, automatically compensating for small movements to avoid the risk of misalignment.

Multiple programs

EinScan H2 technology, ergonomic design and excellent software algorithms are two in one, a universal solution suitable for many applications. Use it anywhere, anytime - for prosthetics, virtual display, cultural preservation, digital art, custom clothing, education, furniture design and more.

Amazing scanning software

Provides a professional yet easy-to-use 3D scanning interface with automated processing, intuitive user interface design and intelligent data quality indicators.

EinScan H2 comes with Solid Edge SHINING 3D Edition software to help you achieve more. The EinScan H2 Scan SDK is available and open to customization! Integrate our powerful scanning and data processing into your software or application.
