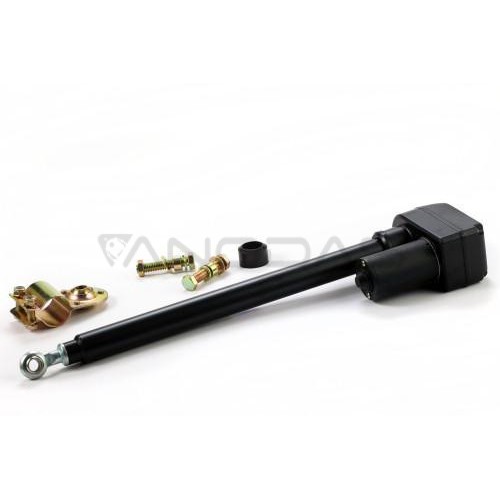

36V linear actuator - Super Power Jack - HARL3624

Working range setting:

The operating range can be set using the limit contacts located inside the actuator, under the protective cover, fastened with four screws.

• Retract the actuator so that the lower limit switch is pressed. Hold the extendable pin so that it does not rotate.
• With the lower limit switch pressed, unscrew the extendable pin to the position from which the actuator is to start.
• After adjusting the actuator's starting point, extend it electrically to the point where you want the actuator to stop. Hold the extendable pin so that it does not rotate.
• When the actuator is at the stop point, loosen the upper cam screw and turn it until the second limit switch is depressed.
• Hold the cam at this point and tighten the mounting screw.

ATTENTION! Particular attention should be paid to the activities described above, because incorrect setting of the limit contacts may result in damage to the structure moved by the actuator or damage to the actuator gear. The extendable spindle should be prevented from rotating after connecting the power supply, as this will disturb the set start and stop points of the actuator. When the pin rotates, the limit switches must be readjusted according to the procedure described above.
