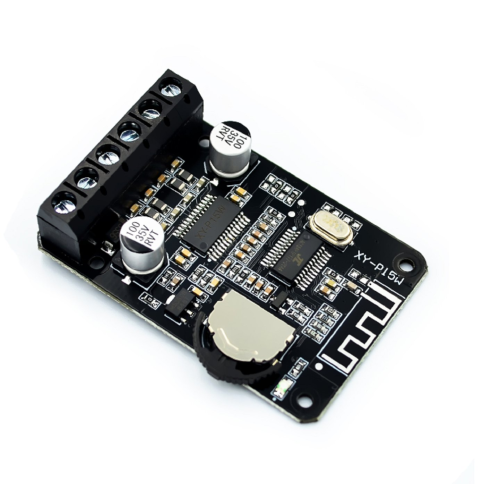

30W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Amplifier Module XY-P15W

Product Code: AS2346
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse Out of Stock
9.00€
Ex Tax: 7.44€

Qty

30W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Amplifier Module XY-P15W.

Bluetooth 5.0 stereo audio power amplifier board 20Wx2.

Bluetooth receiver DC 12~24V supply .

Product Characteristics :

  • Product Name - Bluetooth stereo audio power amplifier board
  • Product Model - XY-P15W
  • Supply voltage - DC: 8~24V
  • Bluetooth version - 5.0
  • Connect distance - 15 meters(visible)
  • Output mode - stereo
  • Output power(@1KHz) - 16W*2 @12V 4, 10W*2 @12V 8, 15W*2 @16V 8,  20W*2 @20V 8,  30W*2 @24V 8(cooling fin)
  • Speaker selected(30W~150W) - 4(8~12V supply); 8(8~24V supply); 16(8~24V supply)
  • protection - Power reverse protection
  • Short circuit protection - Thermal protection

Operation specification:

  • Supply the module, the blue LED is on, and it goes into Bluetooth mode;
  • Waiting for pairing after playing the audio tone;
  • Turn on phone Bluetooth,XY-P15Wwill be searched and display;
  • Click the XY-P15W,it will connect to the board. It connects successfully with an audio tone;
  • After this you can play the music.
  • The power amplifier board will prepare for the next pairing with an audio tone, when the Bluetooth is disconnected.
