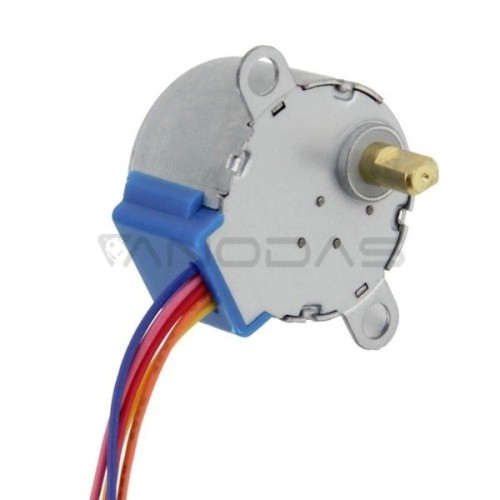

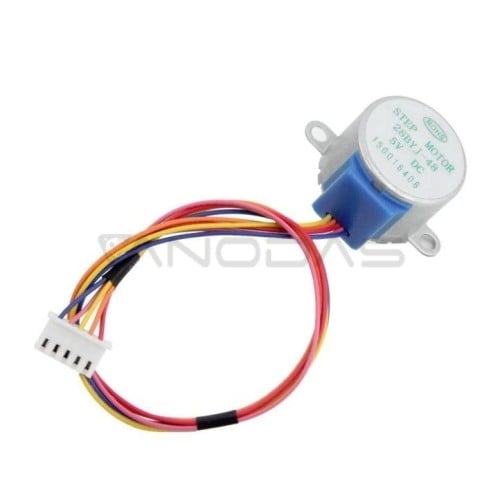

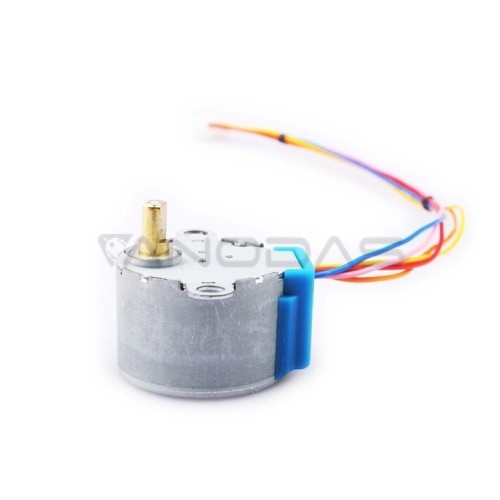

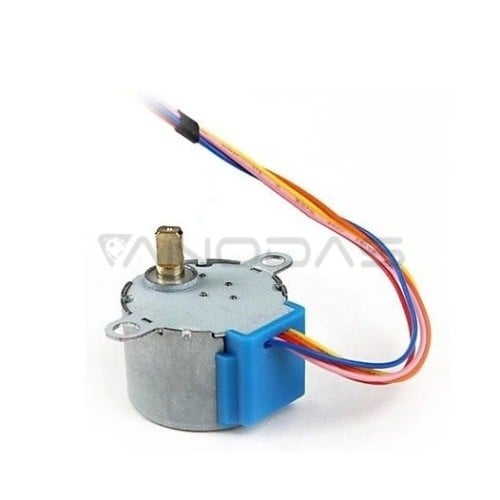

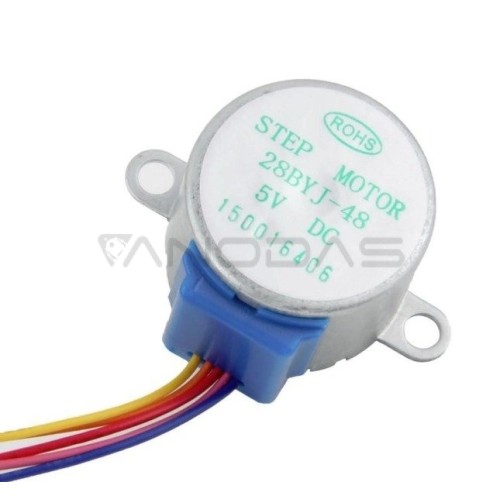

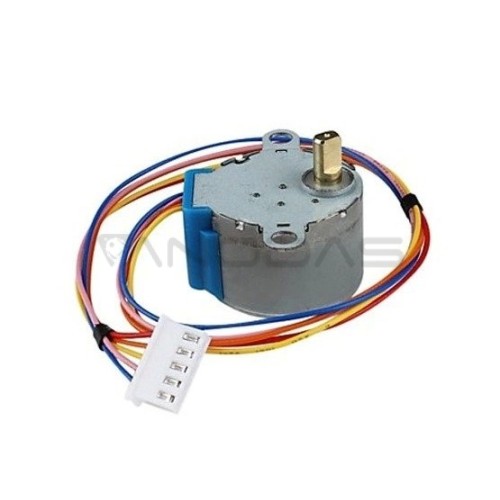

28BYJ-48 stepper motor with gear - 5V 0.3A 0.03Nm - Arduino

Product Code: ABC-6290
Availability: Temporarily Out Of Stock
3.50€
Ex Tax: 2.89€
Arduino 28BYJ-48 stepper motor with gear - 5V 0.3A 0.03Nm Extremely popular 28BYJ-48 stepper motor with integrated 64:1 gear.
  • The average price makes this stepper motor available to everyone, and thanks to the driver and connection to a micro controller, it gives many possibilities to control this motor.
  • There is also a library for Arduino that simplifies motor control by simply specifying the speed, direction of rotation, and the ability to perform a certain number of steps.
  • Therefore, we can control the engine without any problem using dedicated ULN2003 controllers.
  • The stepper motor is accurate, so it can be used in projects where high accuracy/precision is needed, e.g. 3D printer, CNC, laser machines or others.
Product features
  • Popular stepper motor with gear

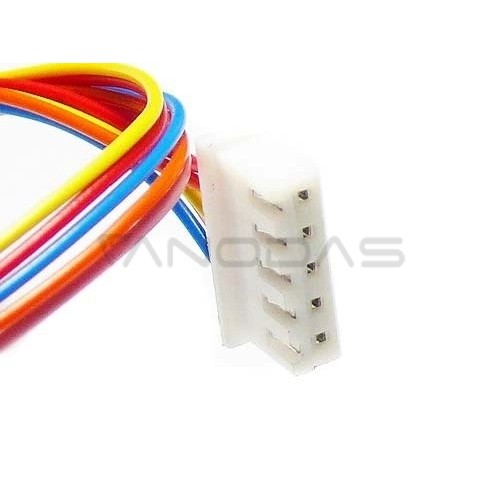

  • Easy connection to the controller - the connector (XH-05) fits the controller
  • ULN2003 controller dedicated to this engine
  • Speed and holding power sufficient for most applications
  • Typical application of stepper motors:
    • printers
    • CNC devices
    • 3D printers
    • laser devices
    • manipulators
    • robots
Technical data
  • Holding torque at the gear output: 0.3 kg*cm (0.03 Nm)
  • Gear ratio: 64:1
  • Rated voltage: 5V
  • Current consumption per coil: 100 mA
  • Coil resistance: 50 Ω
  • Pinouts: five wires

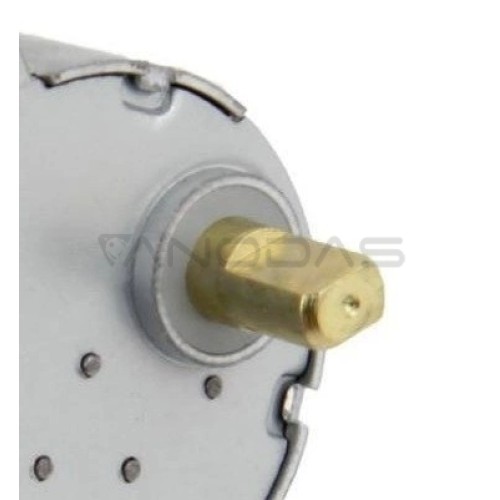

  • Shaft diameter: 5 mm with chamfers
  • Weight: 35 g
  • Distance between mounting holes: 35 mm

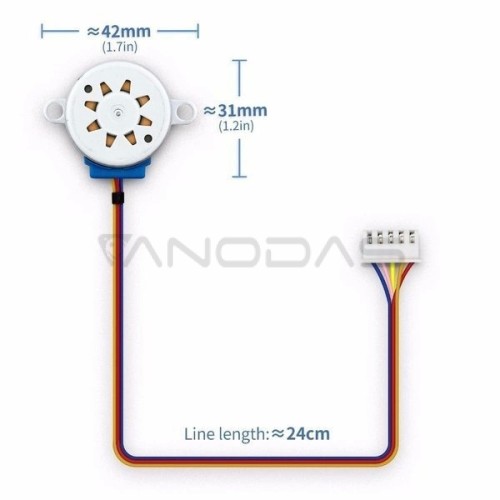

  • Dimensions: ϕ28 x 19 mm (without shaft)

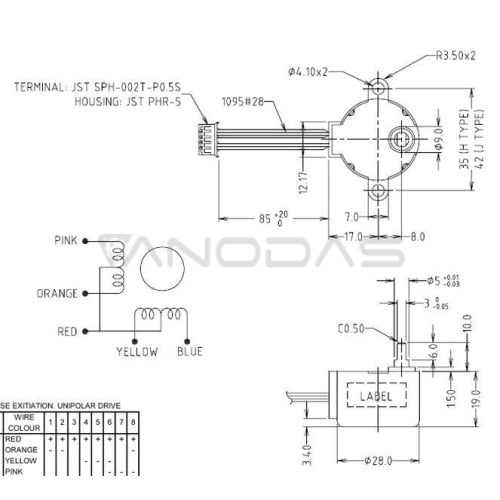

Connection presentation and diagrams
