24V linear actuator - Super Power Jack - HARL2418

Brand: QC - Quality Control
Product Code: MX-HARL-2418
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-23
85.00€
Ex Tax: 70.25€

Qty

The Super Power Jack series linear actuator is distinguished by meticulous craftsmanship and parameters that surpass the average. It is commonly employed in agricultural machinery and specialized equipment, adhering to stringent standards. Clear and transparent instructions make the installation and operation of the actuator straightforward.

To ensure compliance with safety requirements, the device is equipped with limit switches. The direction of feed change is controlled by altering the polarity, and the actuator is driven by a DC (direct current) motor. If you have any inquiries, we are at your disposal. We will assist you in selecting the appropriate extension length, offer guidance on installation, and provide suggestions on how to effectively utilize our product.

Main advantages of the actuator:

  • Very good workmanship.
  • The use of the pulser allows the electronic systems to very precisely determine the position of the actuator.
  • Work stability.
  • Rated voltage: 24V DC.
  • Resistance to unfavorable weather conditions.
  • Freely adjustable extension from a few mm to the nominal value.
  • Unlimited number of applications for the actuator.
Possible use in automation. control of devices such as:
  • Elements of broadly understood automation.
  • Door, windows, gates, wickets.
  • Linear machine elements.
  • Lifts of heavy elements such as engines or motorcycles.
  • Solar panels, light following function.
  • Wind power plants.
  • Agricultural machinery and vehicles.
  • Smart buildings.
Control options:
  • By radio using a remote control.
  • Manual control, using buttons.
  • Automatic – use of time intervals or sensors.
The set consists of:

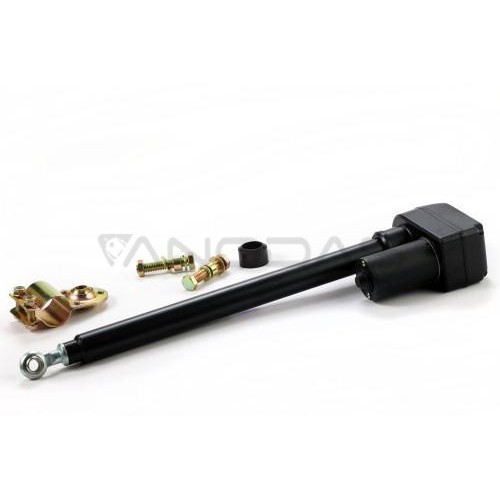

  • Super Power Jack linear actuator.
  • Articulating mounting.
  • Screws for assembly.
  • Gasket for the end of the arm.
  • Written 12-month warranty and user manual.

Diameter d [mm]: 33
Length L [mm]: 705
Series: Super Power Jack
Operating temperature [°C]: -25°C...+65°C
Protection class: IP 52
Speed: 7.5 mm/s
Pulse resolution: 48 imp/inch
Force: 2000 N (200 kg)
Range L: 460 mm
Supply voltage: 24 VDC
Maximum current: 2A
Limit switches: Adjustable
