2.2kW Water Cooled Spindle Motor KIT

The 2.2kW Water Cooled Spindle Bundle is the most powerful Spindle we offer, which is a must have for anyone who takes their CNC machine serious.

The 2.2kW Spindle and VFD Inverter in this bundle are high quality from a well respected brand; Huanyang – an industry leader in CNC machining.

The 2.2kw Water Cooled Spindle is a heavy duty router, and due to the water cooled system, is comfortably capable of running for a long time without stopping, which makes it ideal for long, complicated jobs or applications.

It contains all the hardware for mounting a 2.2kW Water Cooled Spindle on a Lead CNC Machine, Ox CNC, WorkBee or other CNC machine.

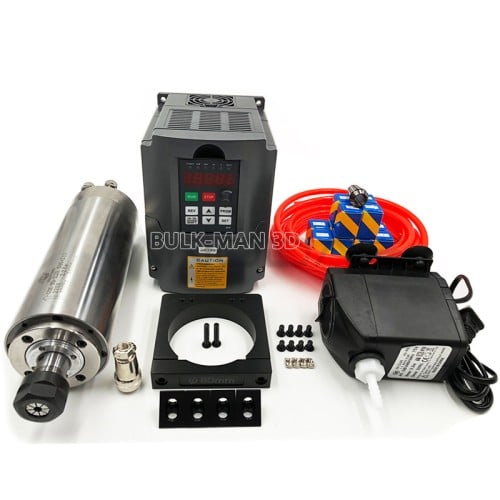

Package includes:

• 2.2KW Water Cooled Spindle (Diameter 80 mm) x 1 pcs
• VFD Controller x 1 pcs

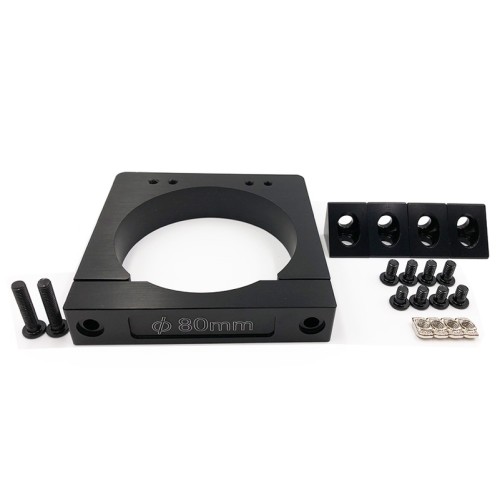

• Spindle Mount Kit (ID 80mm) x 1 pcs
• 75W Water Pump x 1 pcs
• Water Pipes x 1 pcs
• ER20 collet chuck set from 1 mm to 13 mm x 14 pcs

• Brand: Huanyang
• Spindle Size: ø 80 x 213mm (Diameter: 80mm x Length: 213mm)
• Material: The cover is made of 304 stainless steel, and the water jack is high compression casting aluminium tube, red copper coil
• Power: 2.2 kW
• Voltage: 220 V/110 V
• AC Rated Current: 8 A
• Frequency: 0-400 Hz
• Max Rotation Speed: 2400 R/min
• Water Cooled Run out: 0.01 mm
• Bearing: 7005 bearings (3pcs) , 7002 bearing (1pc)
• Coaxality: 0.025 mm (2.5 microns)

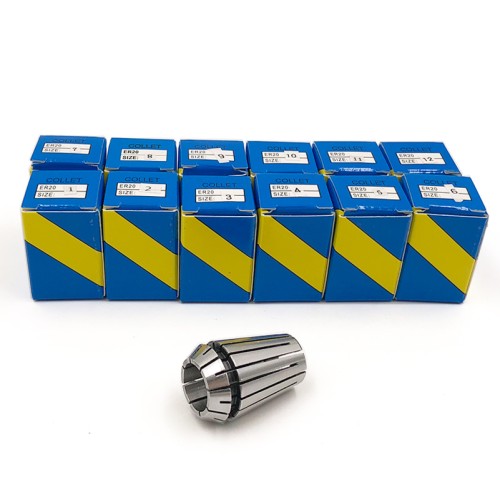

• Collet: ER20 Sizes: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/12.5mm/12.7mm/13mm

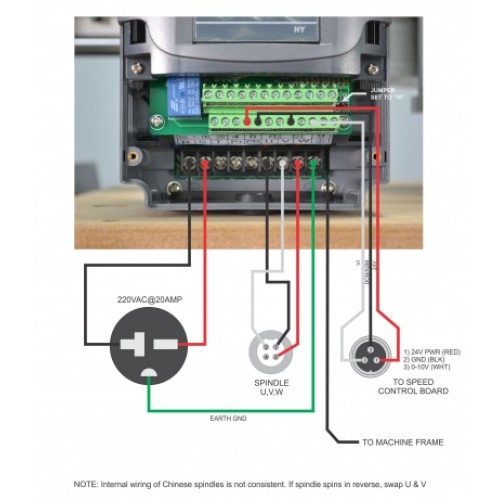

• Power interface: GX16 water proof aviation plug marked with numbers 1, 2, 3, 4
• Numbers 1, 2 and 3 are connected to the inverter power U, V, W respectively. Number 4 is connected to the Earth wire Lubrication: High temperature resistance grease lubrication

• Brand: Huanyang
• Input Voltage: 220 V
• AC Output Voltage: 208-240 V
• AC Input Frequency: 47 / 63 Hz
• Output Frequency: 0-50 Hz / 0-400 Hz
• Power: 2.2 kW
• Input Phase: 1 or 3 phase
• Output Phase: 3 phase
• Control Mode: V/F, Sensor-less Vector Control (SVC), Torque control
• Speed Adjusting Range: 1:100 (SVC)
• Carrier Frequency: 1 kHz – 15.0 kHz
• Automatic Voltage Regulation Function (AVR)

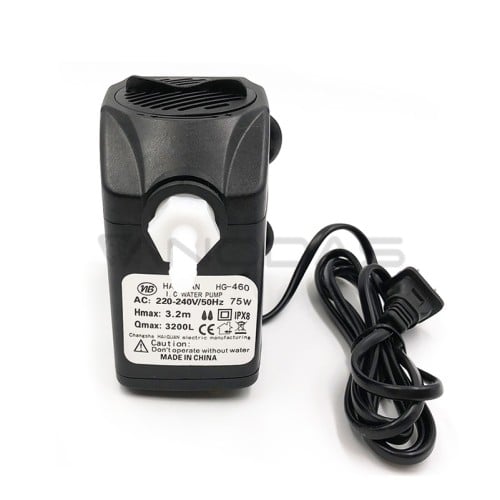

• Brand: Haiguan
• Model: HG-460
• Voltage: 220-240 V
• Frequency: 50 Hz
• Power: 75 W
• Protection: IPX8 Defined as immersion in over 1 meter of water
• H-Max (Lift height): 3.2 m
• Max Flow Rate: 3200 L/H

• Material: Polyurethane
• Colour: Orange
• Internal diameter: 5 mm
• External diameter: 8 mm
• Length: 5 m

• Spindle Motor instruction (3.92MB)
• VFD instruction (12.13MB)
