12V linear actuator - Super Power Jack - HARL1212

The Super Power Jack series linear actuator is characterized by very careful workmanship and above-average parameters. It is commonly used in agricultural machinery and specialized equipment. that meet rigorous standards. Thanks to clear and transparent instructions. Installing and operating the actuator does not pose the slightest difficulty. To meet safety requirements, the device is equipped with limit switches. The direction of feed change is controlled by changing the polarity. The drive consists of a DC (direct current) motor.

• Very good workmanship.
• The use of the pulser allows the electronic systems to very precisely determine the position of the actuator.
• Work stability.
• Rated voltage: 12V DC.
• Resistance to unfavorable weather conditions.
• Freely adjustable extension from a few mm to the nominal value.
• Unlimited number of applications for the actuator.

• Elements of broadly understood automation.
• Door, windows, gates, wickets.
• Linear machine elements.
• Lifts of heavy elements such as engines or motorcycles.
• Solar panels, light following function.
• Wind power plants.
• Agricultural machinery and vehicles.
• Smart buildings.

• By radio using a remote control.
• Manual control, using buttons.
• Automatic – use of time intervals or sensors.

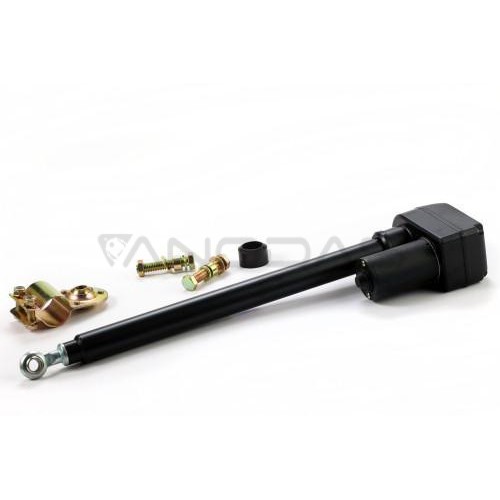

• Super Power Jack linear actuator.
• Articulating mounting.
• Screws for assembly.
• Gasket for the end of the arm.
• Written 12-month warranty and user manual.

The operating range can be set using the limit contacts located inside the actuator, under the protective cover, fastened with four screws.

• Retract the actuator so that the lower limit switch is pressed. Hold the extendable pin so that it does not rotate.
• With the lower limit switch pressed, unscrew the extendable pin to the position from which the actuator is to start.
• After adjusting the actuator's starting point, extend it electrically to the point where you want the actuator to stop. Hold the extendable pin so that it does not rotate.
• When the actuator is at the stop point, loosen the upper cam screw and turn it until the second limit switch is depressed.
• Hold the cam at this point and tighten the mounting screw.

ATTENTION! Particular attention should be paid to the activities described above, because incorrect setting of the limit contacts may result in damage to the structure moved by the actuator or damage to the actuator gear. The extendable spindle should be prevented from rotating after connecting the power supply, as this will disturb the set start and stop points of the actuator. When the pin rotates, the limit switches must be readjusted according to the procedure described above.
