125 mm polyurethane wheel, load capacity 400 kg RE.F4-125-RBL

Brand: ELESA+GANTER
Product Code: MX-RE-F4-125-RBL
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-23
45.10€
Ex Tax: 37.27€

Qty

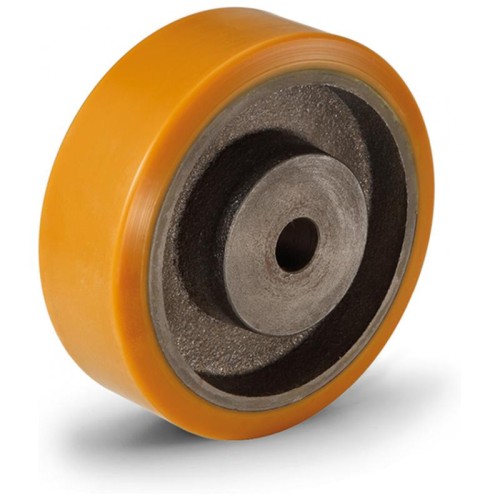

The wheel with a poured polyurethane rim RE.F4-125-RBL is a durable transport wheel with a diameter of 125 mm, which is equipped with a cast iron hub and polyurethane tread with a hardness of 95 Shore A. The wheel has a through hole directly in the disc, which allows for quick and easy installation. The wheel is durable and has a load capacity of up to 400 kg. It is an ideal solution for use in trolleys, transport trolleys, pallets and shelves. The wheel with a cast polyurethane rim RE.F4-125-RBL is a durable and reliable transport wheel that will be an ideal solution for use in many different applications.

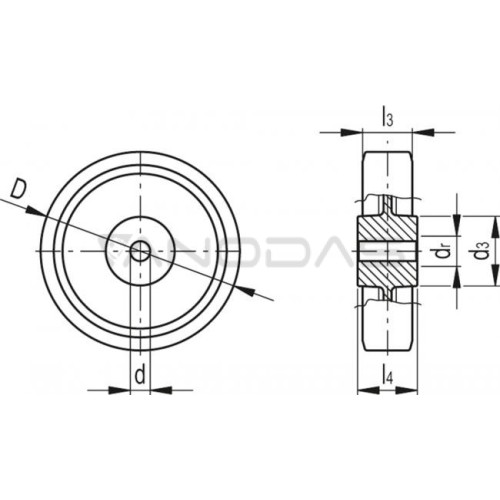

d%3%: 60
Housing: without housing
d%H7%: 20
l%4%: 60
Dynamic load #[N]: 4000
Static load #[N]: 6000
dr*: 30
Hub: cast iron
Tread: polyurethane
Tread hardness: 95 Shore A
Wheel diameter (D): 125
Tread width (l3): 40
Load capacity [kg]: 400
Wheel bearing: through hole directly in the wheel disc
