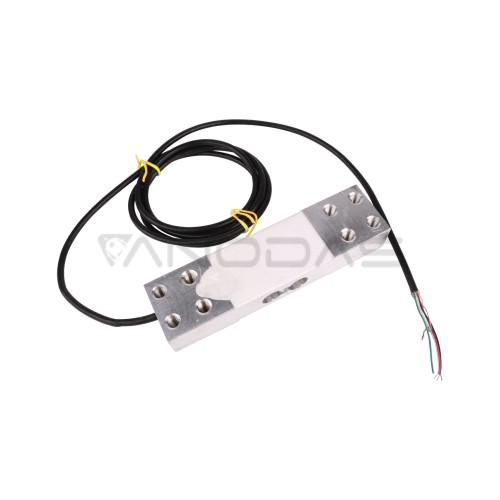

100KG to 150kg Weighing Scale / Load Cell Sensor

Weight sensor capable of measuring a load of up to 150 kg, suitable for hanging scales. Most accurately measures weight up to 100 kg. Have you ever considered how to measure heavy loads and weights? This is done by using force sensors (Load-cells), which work by measuring the change in resistance of the sensor due to metal deformation. Sensors of this type are often found in warehouse scales.
Recommended for use with the HX7111 force sensor interface module.

Specifications:

• Load Cell Type: Parallel Beam Strain Gauge
• Sensing Capacity: 100kg
• Wheatstone Bridge Structure: Half-Bridge
• Excitation Voltage: 5V to 10V DC
• Rated Output (mV per Input V): 1mV/V
• Internal Bridge Resistor: 1000Ω
• No. of Cable Leads: 4
• Measuring Precision: ±0.05%
• Recommended Interfacing Module: HX711 Load Cell ADC Amplifier
• Housing Material: Steel Alloy
• Mounting Holes: 2 x M5 | 2 x M4
• Dimensions 38 x 24.2 x 147.9mm
