10-segment LED Bar Display OSX10201-GGR1

Brand: OEM
Product Code: AN-08169
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-31
2.00€
Ex Tax: 1.65€

Qty

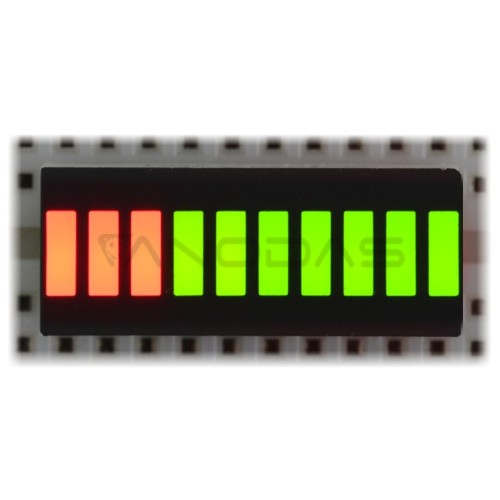

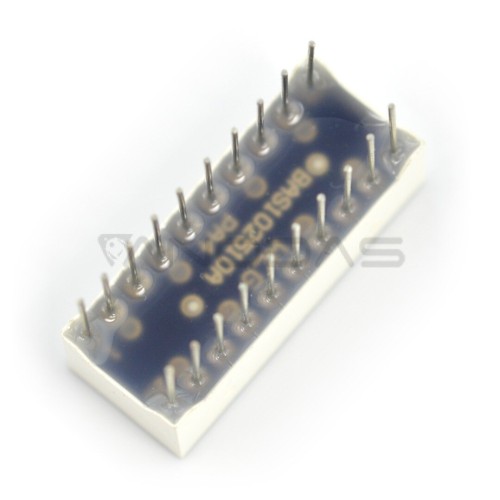

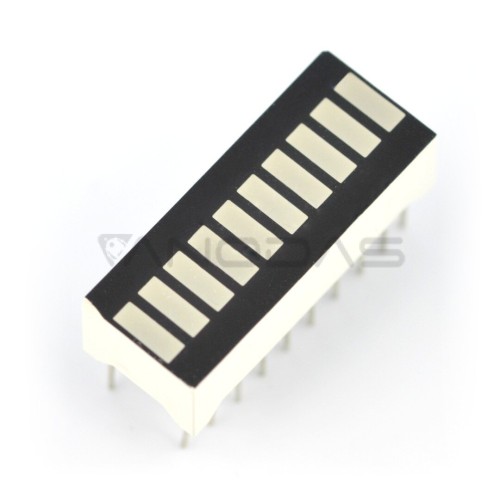

10-segment LED display, the range of colors: 7 x green, 3 x red. It can be used for example as a temperature gauge or liquid level.

Specification:

  • Display type: LED range
  • Mounting: THT
  • Colors:
    • 7 x green
    • 3 x red
  • Working current: 20 mA
  • Working voltage:
    • Green: from 2.1 V to 2.5 V
    • Red: from 2.1 V to 2.5 V
  • Wavelength green: 570 nm
  • Wavelength red: 632 nm
  • The brightness of green: 35 mcd
  • The brightness of red: 35 mcd
  • Dimensions: 25.5 x 10.2 x 7.9 mm
