1 Wire Pi Zero DS2482 - 1-Wire module for Raspberry Pi

Brand: AB Electronics
Product Code: AN-11721
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-07
29.30€
Ex Tax: 24.21€

Qty

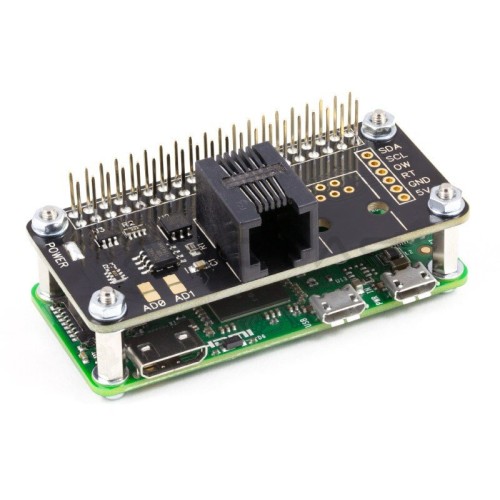

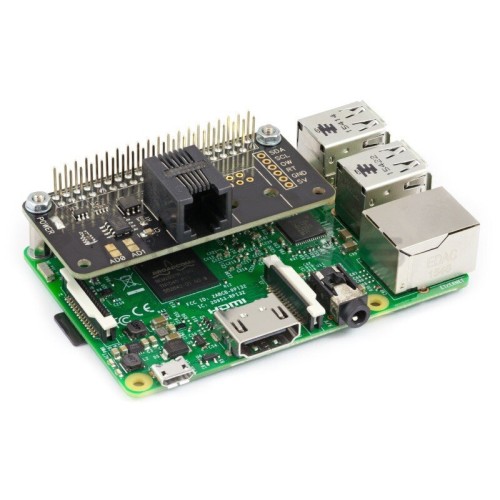

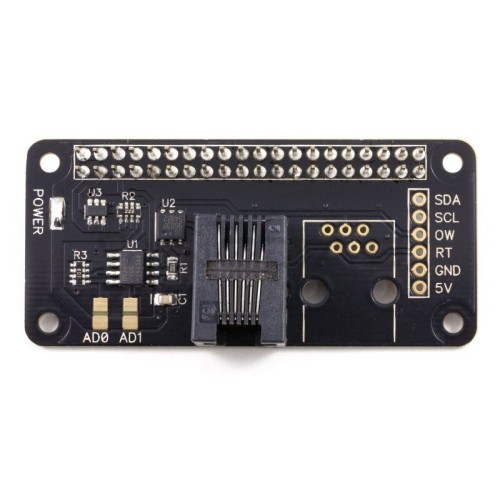

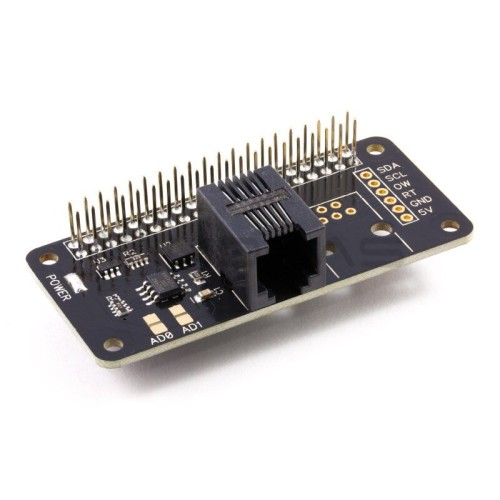

Shield for Raspberry, based on the DS2482-100 system, enabling the use of the 1-Wire protocol. The module converts to the I2C interface. It has a built-in RJ12 connector, electrostatic protection and the possibility of a separate power supply.

Specification:

  • Power supply: 5 V
  • Driver: DS2482S
  • Interface 1-Wire with a protecting ESD LED
  • A possibility of cascade connection
  • Cached port of 5 V
  • External power input for 1-Wire interface.
  • I2C address is selected, using jumpers.
  • Voltage of operation of the I2C interface: 5 V
  • Current on pins 1-Wire: 20 mA
  • Total maximum current: 100 mA

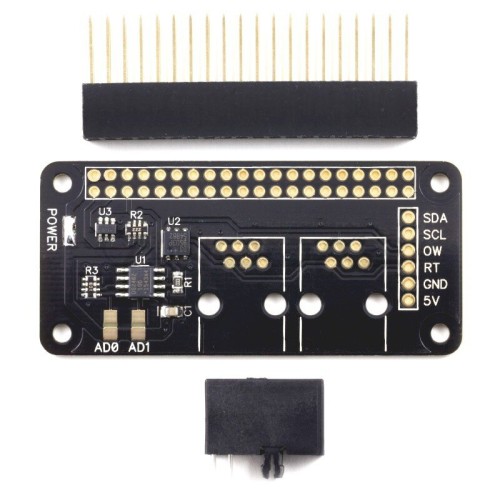

  • Included is connector of 2x20 pin and RJ12 for self-soldering
