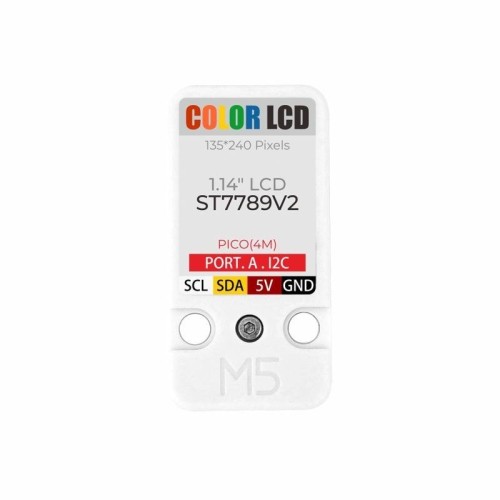

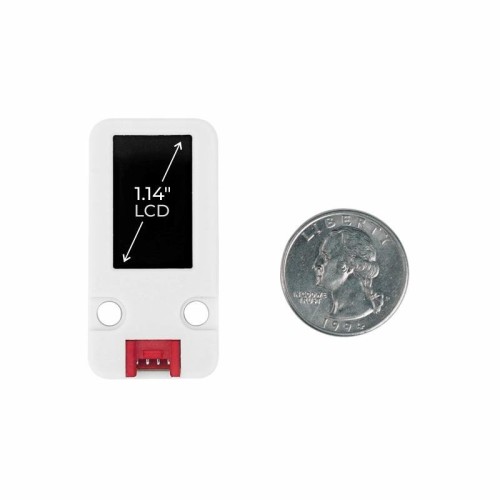

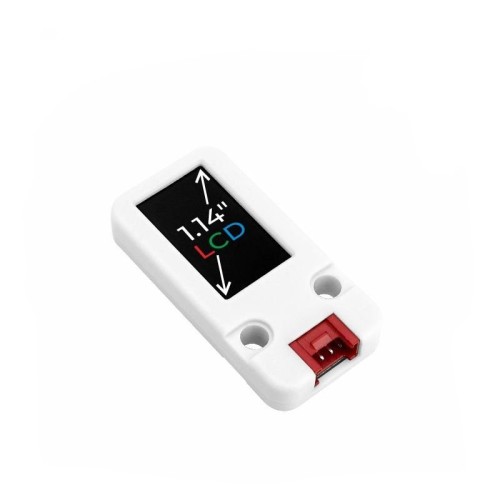

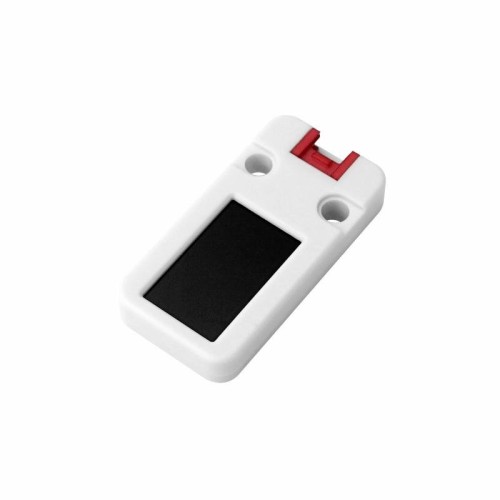

1.14'' 135x240px LCD display - expansion module Unit for M5Stack development modules
Brand: M5Stack
Product Code: AN-19921
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-15
Product Code: AN-19921
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-15
Ex Tax: 24.05€
LCD display in the form of Unit type expansion module manufactured by the company famous for its sandwich modules - M5Stack. The diagonal of the screen is 1.14” and its resolution is equal to 135x240px. The dimensions of a single-pixel are 0.1101 x 0.17 mm. The display has a built-in ESP32 and ST7789V2 control chip. The module presents values in the RGB666 gamut, which allows achieving a really interesting effect consisting of up to 262,144 colors.
Specification:
Specification:
- Compatible with M5Stack development modules: M5Stack Core, M5Atom, M5Stick
- Type: LCD display
- Built-in control chip: ST7789V2
- Display colors: RGB666 gamut - 262,144 colors
- Display resolution: 135x240px
- Screen diagonal: 1,14''
- Viewing angle: full
- Current consumption: 45.7 mA
- Communication interface: I2C bus
- Interface address: 0x3E
- Housing material: plastic (PC)
- Built-in magnets enabling non-invasive assembly
- Pinout designations:
- SCL - I2C bus clock line
- SDA - I2C bus data line
- 5V - power supply pin
- GND - system ground
- Pixel dimensions: 0.1101 x 0.1038 mm
- Module dimensions: 48 x 24 x 8 mm
- Weight: 8.5 g
- 1.14'' 135x240px LCD display - expansion module Unit
- Dedicated 4-pin connection cable
