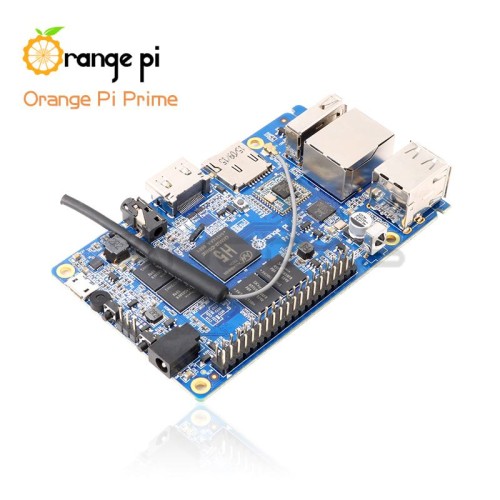

Orange Pi Prime - Alwinner H5 Quad-Core 2GB RAM Mikrokompiuteris

Prekės kodas: ORN-08971
Prieinamumas: Prekių pristatymas 2-3 d.d.
59.2059.20€
Be mokesčių: 48.93€

Kiekis

What’s Orange Pi Prime?

It’s an open-source single-board computer. It can run Android 5.1, Ubuntu, Debian, Rasberry Pi Image, it uses the AllWinner H5 SoC, and has 2GB DDR3 SDRAM.

What can I do with Orange Pi Prime?

Build…
  • A computer
  • A wireless server
  • Games
  • Music and sounds
  • HD video
  • A speaker
  • Android
  • Scratch
  • Pretty much anything else, because Orange Pi Prime is open source


Who’s it for?

Orange Pi Prime is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

Hardware specification

CPU

H5 Quad-core Cortex-A53

GPU

Mali450 GPU including dual Geometry Processors(GP) and quad Pixel Processors

Supports OpenGL ES 2.0 and OpenVG1.1

3000Mpix/sec and 163Mtri/sec

Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage

Memory (SDRAM)

2GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / NOR flash(optional)

Onboard Network

1000M/100M Ethernet RJ45

Onboard WIFI+BT

8723BS, IEEE 802.11 b/g/n,BT4.0

Video Input

A CSI input connector Camera

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Audio Outputs

3.5 mm Jack, HDMI

Power Source

DC input can supply power

GPIO(1x3) pin

UART, ground.

USB 2.0 Ports

Three USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW2), Reset Button (SW4)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+

LED

Power led & Status led

Key

IR input, POWER,Reset

Supported OS

Android, Ubuntu, Debian, Rasberian Pi Image

Interface definition

Product size

98 mm × 60mm

Weight

68g
